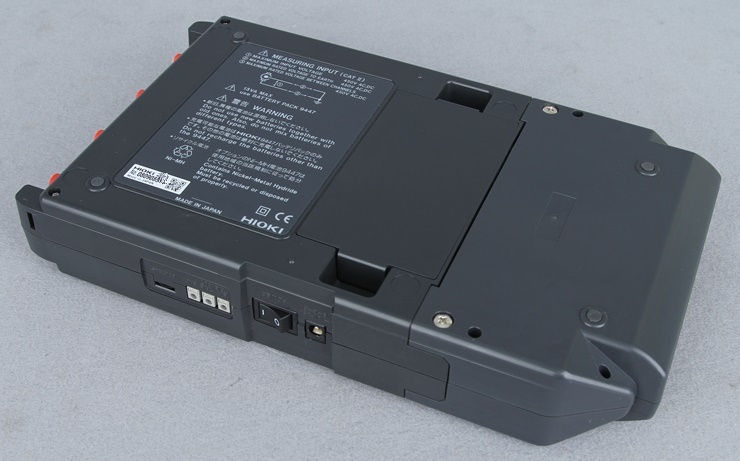

Hioki 8715 Power HiCorder


- Simultaneous input of 4ch insulation of voltage and current is possible.
- Measurement function is to record abnormal waveform measurement waveforms) (over-power variation monitoring effective values)
- Preserve and record data just before the ideal time
- Transient phenomena that cannot be recorded with Penreco can also be recorded.
- Clamp on-probe current recording is also simple and easy to record instantaneous power outages, voltage drops, and voltage fluctuations!
- Measurement function: Abnormal waveform measurement (power waveform observation), power variation monitoring (effective value variation observation)
- Time Axis: When measuring abnormal waveforms; 200 μs to 20 ms/div,7 range,sample extraction cycle; preserves the record sheet selected in 1/80 20 50 100 200 400 division of the range.
- when monitoring power fluctuations (50/60 Hz);10s~1h/div,8 range,sample extraction cycle;250μfixed,data interval recorded 1/80 consecutive times of range (preserve the last 200div minutes)
- Input range: Voltage;100V,200V,400V (600V using 9322)/current;Kuranfu
- Trigger : leveltrigger, windowtrigger, voltage drop trigger, periodtrigger (only for abnormal waveform measurement), waveform determination trigger (only for abnormal waveform measurement)
- Frequency characteristics: DC to 50 kHz, ± 3 dB
- Memory: Capacity 12 bits×64 k words (always 4ch measurements)
- Interface PC Card
- Display: 5.7 Determination of STN color liquid phase (240×320 points)
- Function: Condition factor, cursor measurement, start status view, automatic set-up, list and gauge print,DMM function
Components: Main body, 9197 access code x 4, instruction manual, power cord, adapta, print paper, 1 holder bracket (+ accessory), dedicated CD, 9448 (power input code)
To get the actual shipping cost to your location, please contact us before purchasing.
The shipping cost will be adjusted to the actual shipping cost.

Hioki 8715 Power HiCorder
